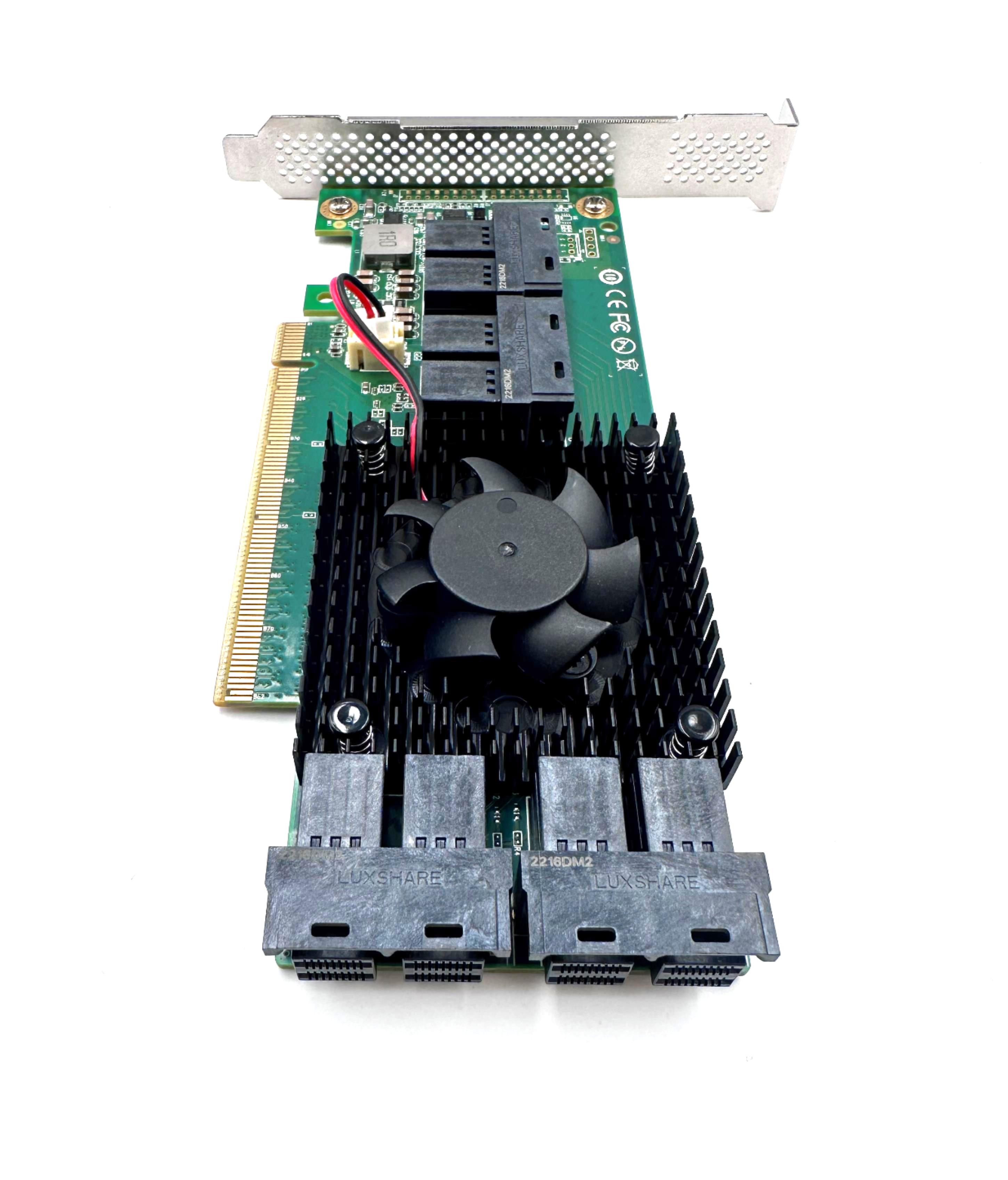

STC PE163-8I PCI Express x16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card
Overview
The STC PE3163-8I is a switch adapter that bifurcation or expands the PCIe 3.0 x16 bus into 8x4 or 4x8 or 2x16. The total bandwidth is PCIe 3.0 x16 (128GT), for example, if you have 8 devices, the bandwidth of each device is 16GT (128GT/8), and if you connect 4 devices to any port, the bandwidth of each device is 32GT (128GT/4).
Key Features
■ PCIe 3.0 x16 bus
■ Support up to 8 PCIe or NVMe devices
■ Low-profile form factor
■ Mini-SAS HD connectors
■ Supports Access Control Services.
■ Supports PCIe NVME ports.
■ Compliant with PCI Power Management Spec, r1.2.
Key Advantages
■ Provides connectivity in a low-profile form factor
■ 16 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
■ High performance with 8Gb/s PCIe3.0 data transfer rates
Product Type | STC PE3163-8I |
IO Controller | PEX8749 |
Port Count | 8 port, internal |
Connectors | 4*Mini SAS HD SFF8643 Two (x4) |
Storage Connectivity Data Transfer Rates | 8Gb/s PCIe 3.0 Compliant |
Host Bus | X16 lane, PCIe 3.0 |
Physical Dimensions | 68.9mm*165mm |
Brackets | Full Height and low profile vented |
Operating Voltage | +12V +/-8%; 3.3V +/-9% |
Environmental | Operating: 0°C to 55°C Storage: -40°C to 70°C 5 to 90% non-condensing Airflow: 200 LFM |
OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD; |
