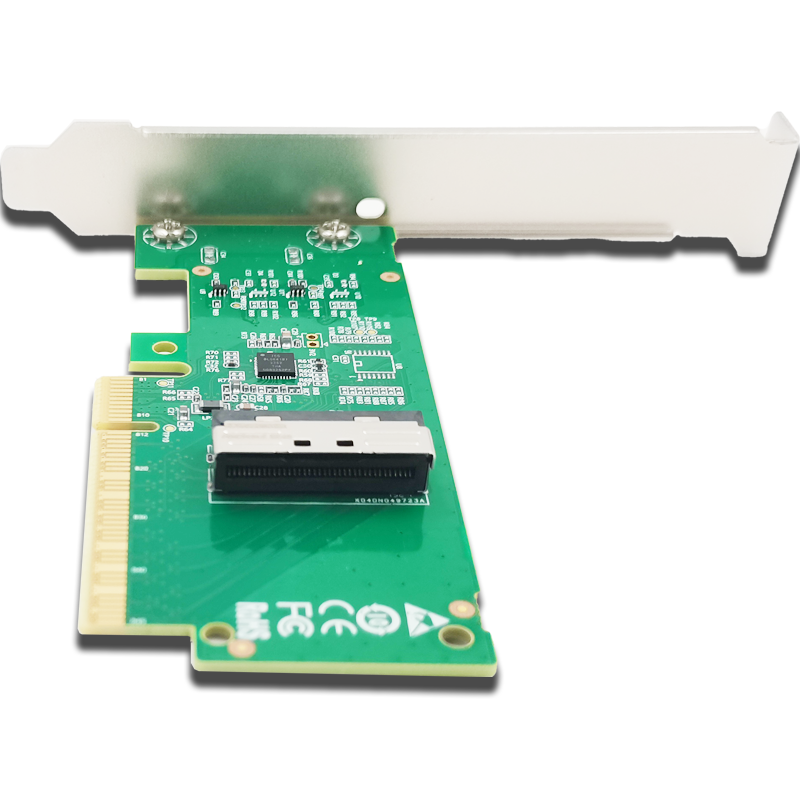

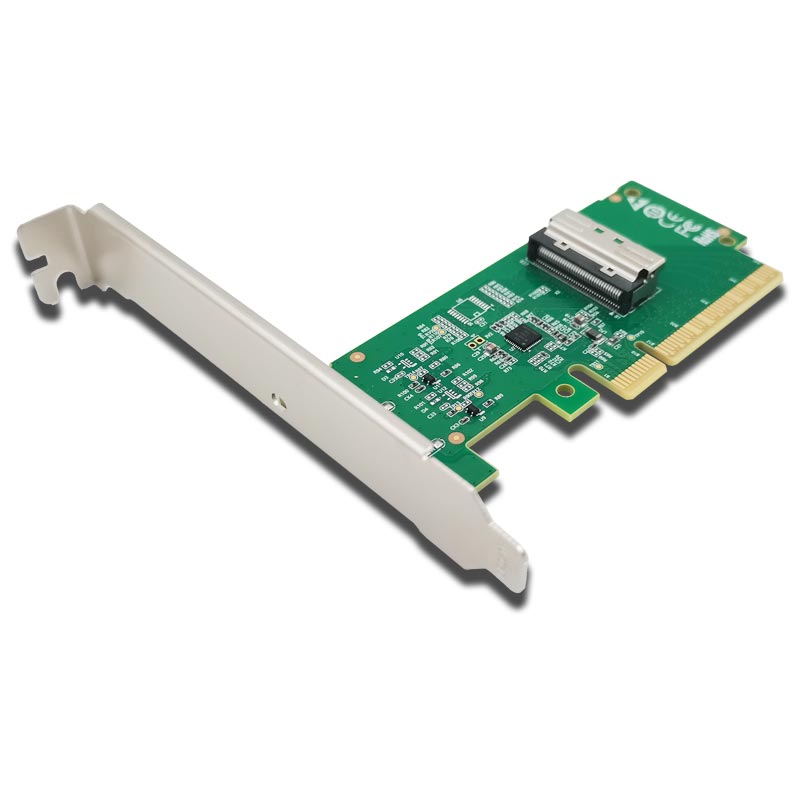

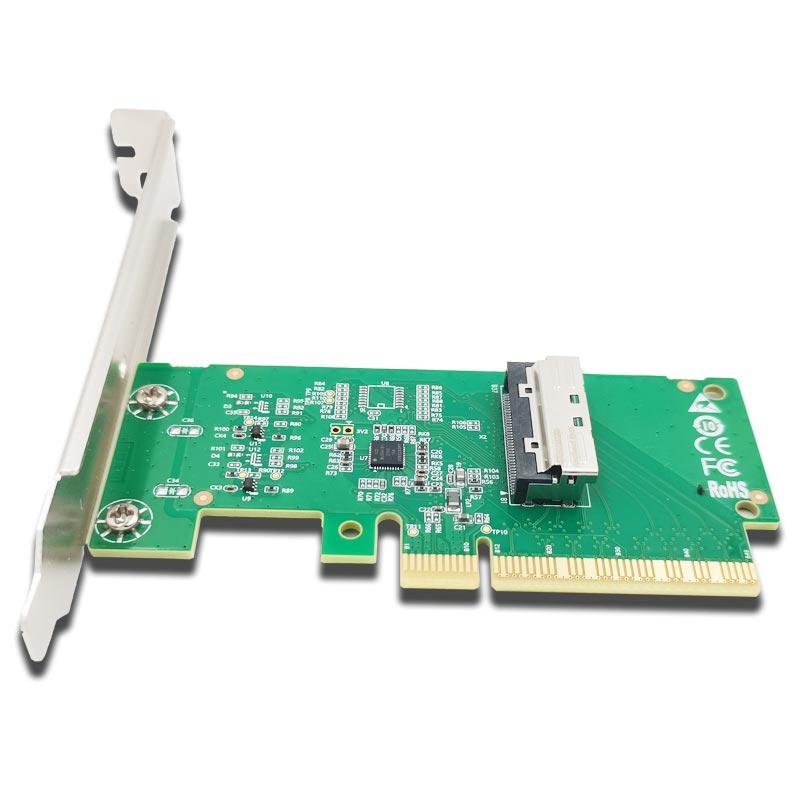

XIC PE580 PCIe 5.0 x8 to MCIO 8i NVMe Adapter

Short Description:

Product Model:XIC PE580
Product Name:PCI Express Gen5 x8 to  2 Port U.2 MCIO NVMe  Adapter
Interface Type:1*MCIO 8I Connectors
Support Equipment:2 Port NVMe SSD or 2 Port PCIe x4 or 1 Port PCIe x8 Devices
Host Bus Type:PCIe 5.0 x8


Product Details

Product parameters

Product Description

XIC PE580 is a high performance, low dielectric loss factor interface conversion card. It connects NVMe SSD or PCIe connectors via MCIO 74pin connector,supports up to 2 PCIe devices or NVMe SSDs . The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x8 link width to bifurcate two x4 link width  for NVMe SSD, Otherwise this card can only support PCIe link width of one device.

Features

Support up to 2 PCIe devices or NVMe SSDs

Compatible with PCIe Gen5, Gen4&Gen3&Gen2&Gen1

Directly connected to U.2 NVMe SSD by MCIO to 2xSFF-8639 cable

Support bifurcated in two x4 data link width configuration(CPU and BIOS both support)

 Build in MCIO 8i connector , pin-out defined by SFF-9402

Operating system support

The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to the host and use the native NVMe drivers.

Redhat

Free BSD

Linux

Windows


HARDWARE

Model

XIC PE580

Number of Device

2 internal

Bus Type

PCI Express 5.0

Interface

MCIO 8I

CONNECTOR(S)

Device Connector

1*MCIO (74 Pin, x8 PCIe Gen 4)

Host Bus Type

PCI Express  x8

Optional Accessories

Optional Cables

MCIO 8i to 2x SFF-8639 Cable   L=0.8m

MCIO 8i to MCIO 8i Cable    L=0.8m

MCIO 8i to 2x MCIO 4i Cable   L=0.7m

SFF-8654 8i to MCIO 8i Cable   L=1m

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

102mm x 45mm

Product Weight

50g

PACKAGING INFORMATION

Shipping (Package)Weight

5.29 oz [150 g]

WHAT'S IN THE BOX

Included in Package

1 - PCI Express x8 to MCIO 8i NVMe Adapter

1 - Low-profile bracket

1 - Full-height bracket (installed)
