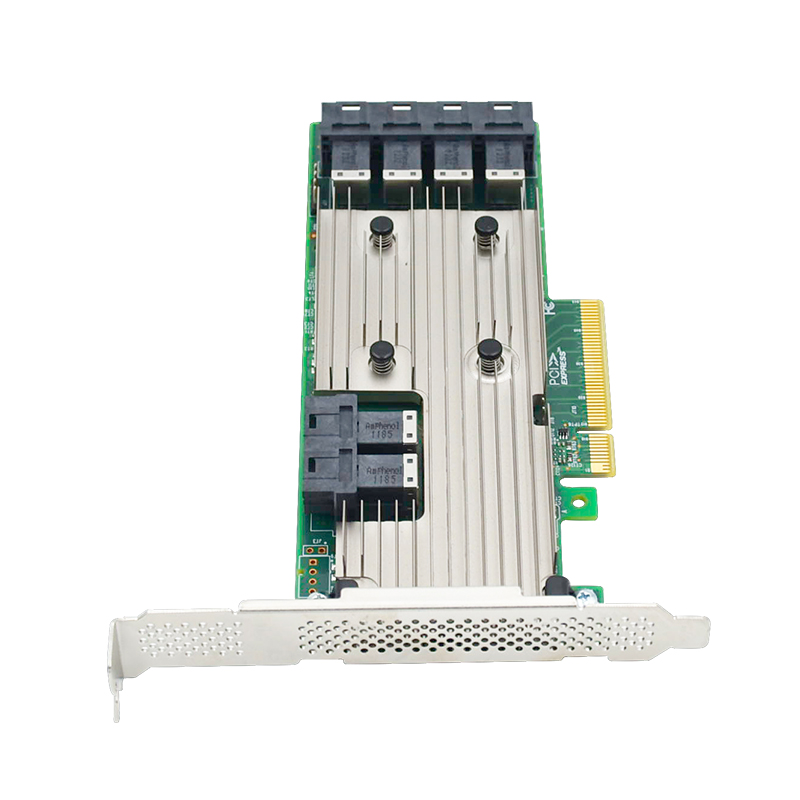

3224-24I 12Gb/s PCIe x8 to 24 Port SAS SATA HBA Controller Card
Overview
The SAS3224-24i controller card is designed based on the Serial Attached SCSI (SAS) controller card (24 12 Gbit/s ports) of the Fusion-MPT™ architecture. It supports the Peripheral Component Interconnect Express (PCIe) 3.0 x8 port and a powerful I/O storage engine, and transparently performs data protection, verification, and restoration.
The SAS3224-24i provides the 3 Gbit/s, 6 Gbit/s, and 12 Gbit/s SAS ports and 3 Gbit/s and 6 Gbit/s SATA ports, with each port supporting the SSP, SMP, and STP.
The SAS3224-24i i supports boot and operations in legacy and UEFI modes.
The SAS3224-24i i provides only the drive passthrough function. Operations related to RAID arrays cannot be performed.
Key Features
■ Implements one SAS 3224 24-port 12Gb/s SAS to PCIe 3.0 controller
■ Supports eight-lane, full-duplex PCIe 3.0 performance
■Supports 24 internal 12Gb/s SATA+SAS ports
■ six internal SFF-8643 connectors
■ Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s
■ Supports SATA link rates of 3Gb/s and 6Gb/s
■ Offered with a full-height bracket and a and a low-profile vented bracket
Product Type | SAS3224-24I |
IO Controller | SAS 3224 |
Port Count | 24 port, internal |
Connectors | Six HD MiniSAS SFF-8643 (x4) |
Storage Connectivity Data Transfer Rates | 12Gb/s SAS 3.0 Compliant 6Gb/s SATA 3.0 Compliant |
Host Bus | x8 lane, PCIe 3.0 |
Physical Dimensions | 68.9mm*156mm |
Package size | 148mm*225mm |
weight | 250g |
Brackets | Full Height and low profile |
SGPIO | SFF-8485 (SGPIO) compliant |
Operating Voltage | +12V +/-8%; 3.3V +/-9% |
Environmental | Operating: 0°C to 55°C Storage: -40°C to 70°C 5 to 90% non-condensing Airflow: 200 LFM |
OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware; |
