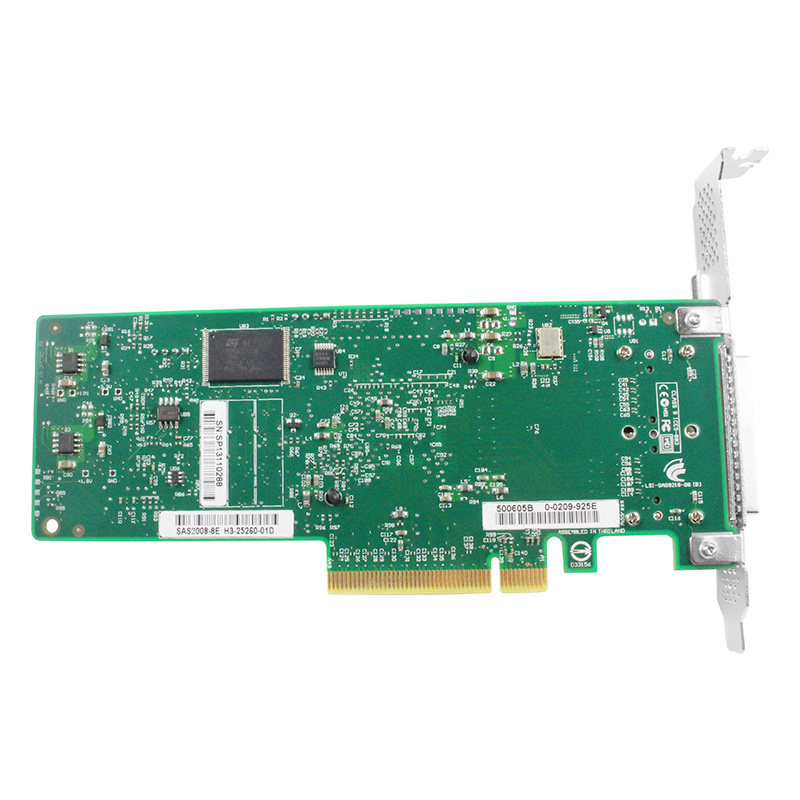

2008-8E PCIe External 8-ports 6Gb/s SAS HBA
Overview
The SAS2008-8e PCI Express® (PCIe®) to Serial Attached SCSI (SAS) host bus adapter (HBA), hereinafter referred to as the SAS2008-8e HBA, provides high-performance external storage connectivity for servers and workstations. The SAS2008-8e HBA provides eight lanes of 6Gb/s SATA or SAS connectivity and is matched with eight lanes of PCIe 2.0 5Gb/s performance. The low-profile design of the SAS HBA includes a full-height bracket and a low-profile mounting bracket that creates a universal fit for any server. The SAS2008-8e HBA is based on the Fusion-MPT™-architected LSI SAS 2008 controller that integrates the latest enhancements in PCIe 2.0 technology and 6Gb/s SAS technology.
The SAS2008-8e HBA has onboard Flash memory for the firmware and BIOS.
Key Features
■ Implements one LSI SAS 2008 eight-port 6Gb/s to PCIe 2.0 controller
■ eight external 6Gb/s SATA+SAS ports
■ Eight lanes of PCI Express 2.0
■ Offers a full-height bracket and low-profile bracket
■ Provides two x4 external mini-SAS connectors (SFF-8088)
■ Supports passive cable
■ Supports UEFI and Legacy mode boot
■ Supports up to 512 SATA or SAS end devices
Product Type | SAS2008-8E |
IO Controller | SAS 2008 |
Port Count | 8 port, external |
Connectors | Mini SAS SFF-8088 Two (x4) |
Storage Connectivity Data Transfer Rates | 6Gb/s SAS 2.0 Compliant 6Gb/s SATA 3.0 Compliant |
Host Bus | x8 lane, PCIe 2.0 |
Physical Dimensions | 68.9mm*168mm |
Package size | 148mm*225mm |
weight | 186g |
Brackets | Full Height and low profile |
Operating Voltage | +12V +/-8%; 3.3V +/-9% |
Environmental | Operating: 0°C to 55°C Storage: -40°C to 70°C 5 to 90% non-condensing Airflow: 200 LFM |
OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware; |
