Product Description

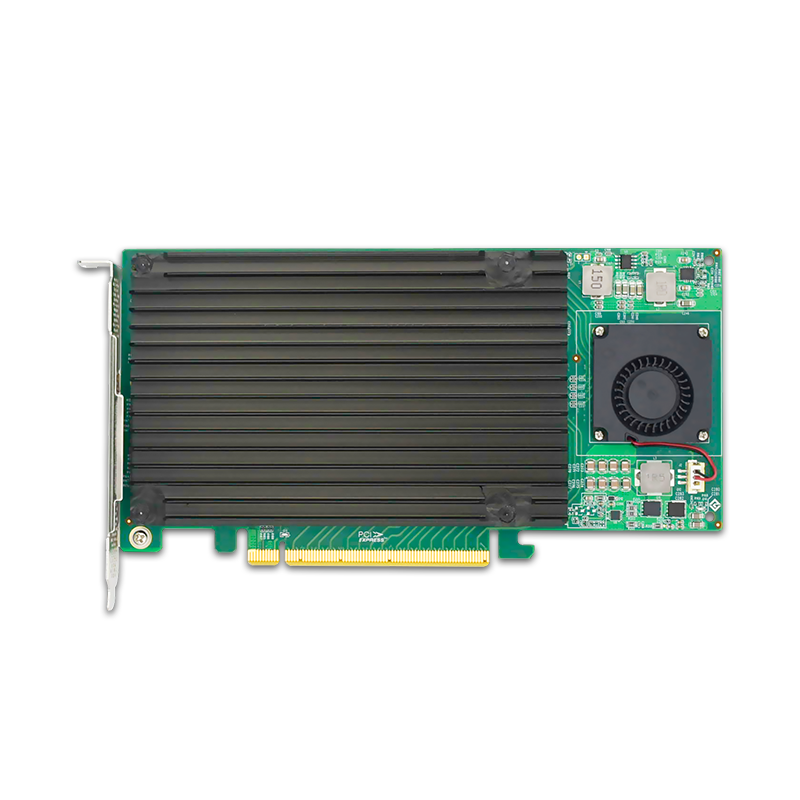

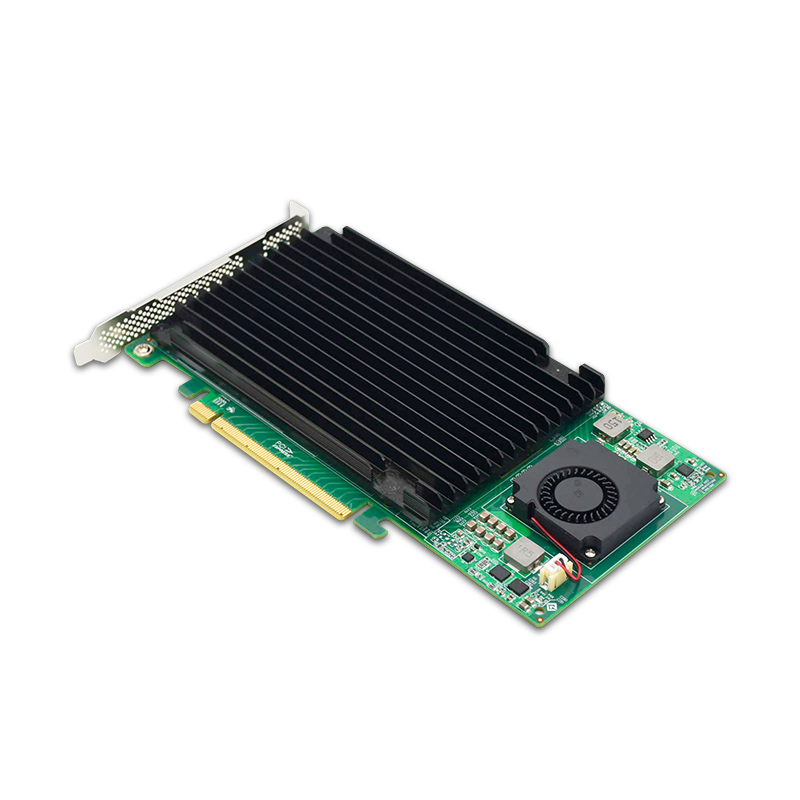

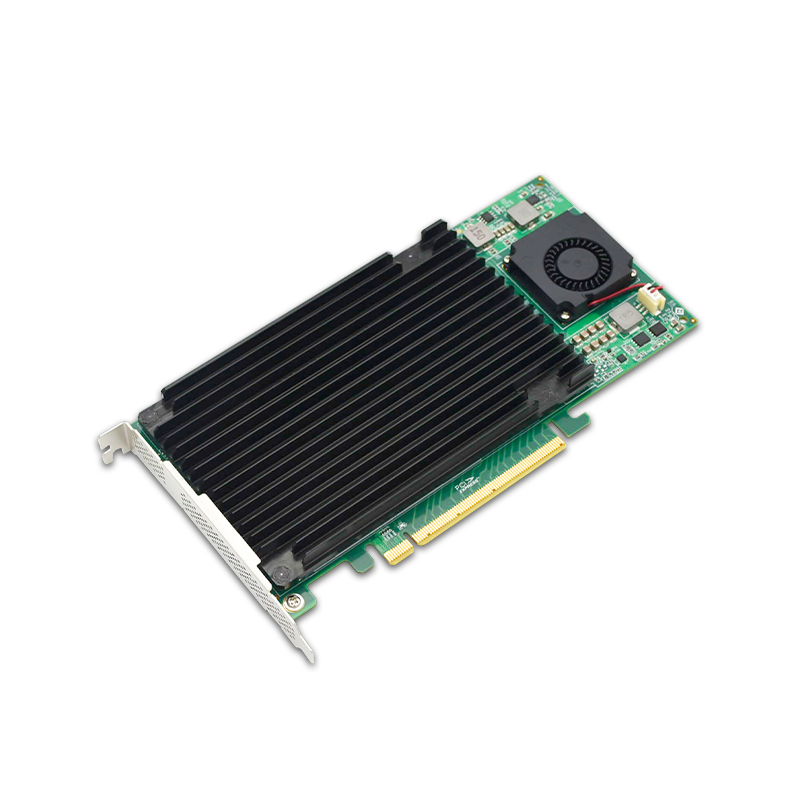

STC PE3162-4I NVMe Adapter is PCI Express x16 Gen3 PCIe switch Card. It expands the maximum storage of the 4 M.2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.

Functional Characteristics

l Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

l Supports up to 4 M.2 NVMe SSDs

l Compliant with PCI Power Management Spec, r1.2.

l Microsoft Vista Compliant.

l Supports Access Control Services.

l High Performance. Non-blocking switch fabric, Full line rate on all ports.

l Quality of Service. Eight traffic classes per port.

l Reliability, Availability, Serviceability.

l Supports PCIe M.2 SSDs (NVMe) in 2242, 2260,2280,22110mm

l The PCIe transfer rate up to 128Gb/s and each SSD transfer rate up to 32Gb/s.

Applications
PE3162-4I is suitable for expanding more SSD interfaces to connect more SSDs for increased storage capacity.

Advantages
Suitable for small sized M.2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M.2 SSD running at the same time.
